Expandable Container System

Our ISO Containers are individually customizable and can be flexibly connected to our tent systems. Depending on requirements, they can be equipped with CBRN protection, ballistic protection, as well as EMC/EMP protection.
  • Simple Mechanical Extension and Retraction, as Well as Lowering of the Extensions to the Same Floor Level (No Steps)
  • Designed for Remote Operation or Mounted Operation on a Carrier Vehicle
  • Overpressure-Tight ≥ 2.5 hPa at 100 m³/h Airflow Rate
  • Individually Customizable
  • Also Available as a Roll-Off Container
  • Available on Request with CBRN Protection, Ballistic Protection, and EMC / EMP Protection

VARIATIONS

Container Expandable in a 1:3 Ratio

Central Section

Small Extension:
(on the right side when viewed in the direction of travel) as a full extension

Large Extension:
(on the left side when viewed in the direction of travel) as a full extension

Entrance Door:
centrally located in the rear wall of the central section

Emergency Exit Door:
in the side wall of the large extension

Total Usable Area:
approx. 30.3 m²

Tare Weight:
depending on configuration between 5.35 t and 6.9 t

Gross Weight:
maximum permissible gross weight depending on configuration up to 12.5 t

Equipment Load Capacity:
maximum permissible load in the small extension 2.3 t (optional 2.9 t)

ERW-1

Container 1:2 DUO

Central Section

Extension:
(on the left side when viewed in the direction of travel) as a half extension

Extension:
(on the right side when viewed in the direction of travel) as a half extension

Entrance Door:
centrally located in the rear wall of the central section

Emergency Exit Door:
in the side wall of one extension

Total Usable Area:
approx. 30.3 m²

Tare Weight:
depending on configuration between 5.6 t and 8.9 t

Gross Weight:
maximum permissible gross weight depending on configuration up to 14 t

Equipment Load Capacity:
maximum permissible load per extension 2.3 t

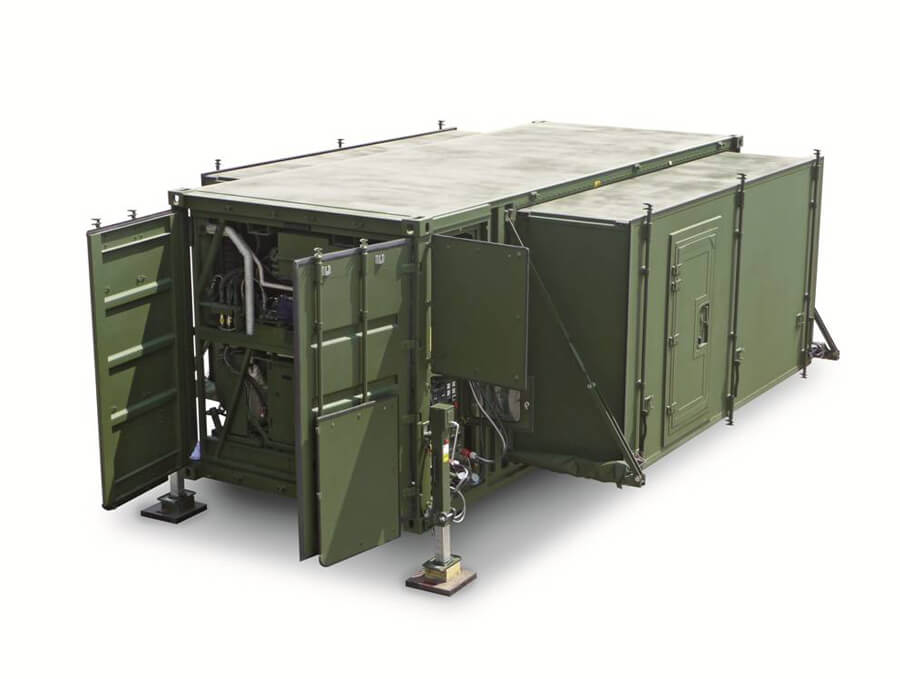

ERW-3

Container Expandable in a 1:2 Ratio

Central Section

Extension:
(on the left side when viewed in the direction of travel) as a full extension

Entrance Door:
centrally located in the rear wall of the central section

Emergency Exit Door:
in the side wall of the large extension

Total Usable Area:
approx. 21.4 m²

Tare Weight:
depending on configuration between 4.85 t and 6.5 t

Gross Weight:
maximum permissible gross weight depending on configuration up to 12.5 t

Equipment Load Capacity:
maximum permissible load in the extension 2.3 t (optional 2.9 t)

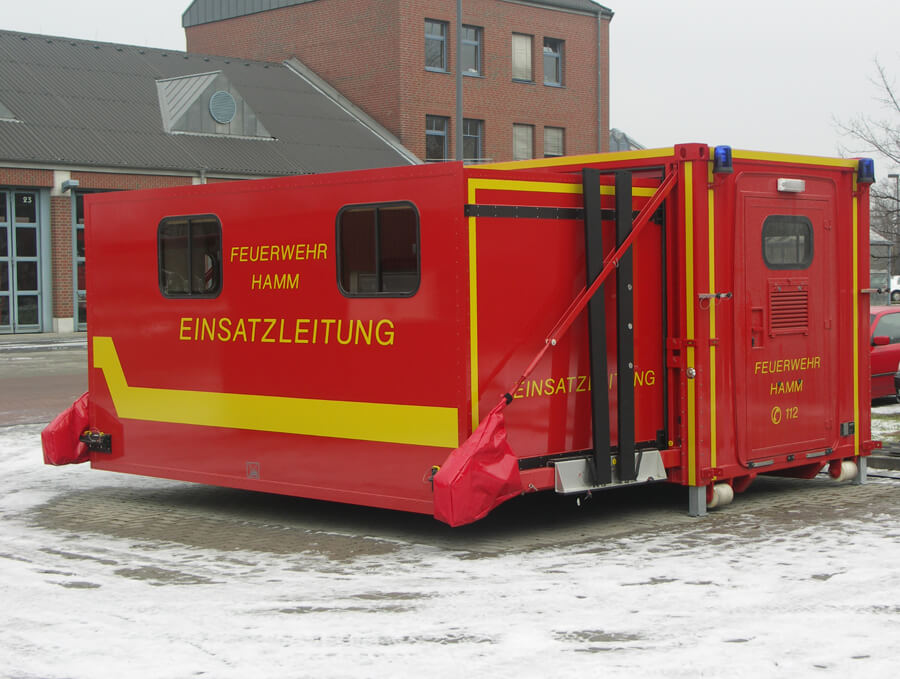

ERW-4

STANDARD CONFIGURATION

Depending on the design, suitable for climate zones A1–A3, B1–B3, M1–M3, and C0–C1 in accordance with AECTP 200 or STANAG 2895, and worldwide use from -40°C to +55°C

by truck / trailer, rail, air, and sea (csc certification by Germanischer Lloyd)

in accordance with IEEE Std. 299 (MIL-STD-285) or VG 95370 T15

for example, for medical cleanrooms or CBRN protection ≥ 2.5 hPa at 100 m³/h air flow rate

Levels 1 to 3 in accordance with STANAG 4569 / AEP 55 available

Sun Canopies, Leveling or Lifting Systems, Connection Airlock Systems (Container-to-Container or Container-to-Tent)
