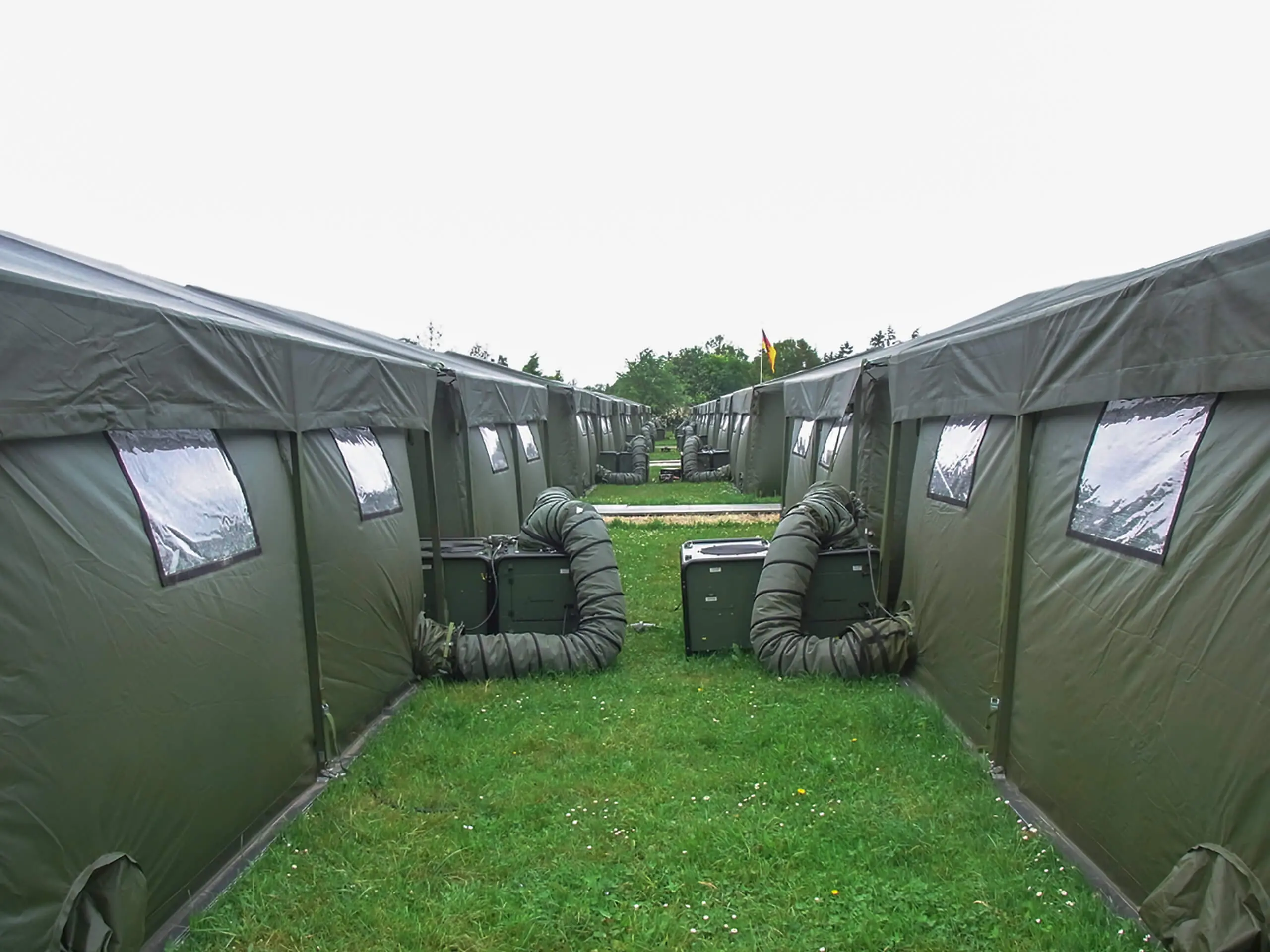

• Frame Tent

KF

This Frame-Supported Lightweight Tent Was Designed for Flexible Use Under a Wide Range of Climatic Conditions Worldwide. With a Weight of Only 100 kg per Basic Unit, It Is Particularly Easy to Transport and Ideally Suited for Temporary Accommodation, Workspaces, or Operational Tents.

  • Width: 4.00 m – 5.00 m
  • Length: 4.50 m – 8.20 m
  • Frame-Supported Lightweight Tent for Worldwide Deployment
  • Basic Unit Weighing Only 100 kg
  • Tool-Free Setup and Dismantling
  • Frame Poles Made of Powder-Coated Aluminum, Connectors Made of Corrosion-Protected Steel

VARIATIONS

KF 12



Width: 4.00 m / Length: 4.50 m / Ridge Height: 2.45 m
Wind Load: 110 km/h / Snow Load: 25 kg/m²
Supply Number: 8340-12-380-9999

Setup Time:
2–3 Persons / Depending on Configuration
20 to 45 Minutes

KF-3

KF 22



Width: 5.00 m / Length: 6.48 m / Ridge Height: 2.86 m
Wind Load: 110 km/h / Snow Load: 25 kg/m²
Supply Number: 8340-12-380-9999

Setup Time:
2–3 Persons / Depending on Configuration
20 to 45 Minutes

KF-4

KF 36



Width: 5.00 m / Length: 8.20 m / Ridge Height: 2.45 m
Wind Load: 110 km/h / Snow Load: 25 kg/m²
Supply Number: 8340-12-380-9999

Setup Time:
2–3 Persons / Depending on Configuration
20 to 45 Minutes

lg

STANDARD CONFIGURATION

Powder-Coated, Connectors Made of Galvanized Steel

PVC-Coated Fabric, Flame-Retardant in Accordance with DIN 4102 B1, with Waterproof Welded Seams

2 Mesh Windows (Ventilation) with Exterior Covers (Blackout Function)

2 Zipper Doors

PVC Carry Bags

No Additional Storm Guying Required

OPTIONAL EQUIPMENT

Accessories Catalog
